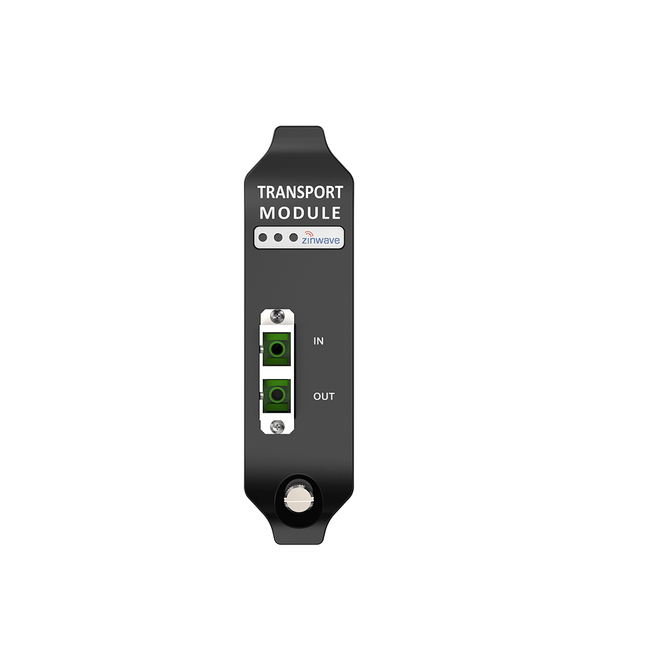

Zinwave Uniwave 8000 Transport Module | 308-0005 - Front
Zinwave Uniwave 8000 Transport Module | 308-0005

Zinwave Uniwave 8000 Transport Module | 308-0005

Zinwave Uniwave 8000 Transport Module | 308-0005 - Front
  • Creates Fiber Link
  • Couples Services Between Two Primary Hubs
  • Deployed in Primary Hubs, Up to 8 in Front or 4 in Rear
  • For Uniwave 8000 Primary Hubs
This is a commercial-grade product needing EXPERT ADVICE from professionals
Phone
Or call our experts directly Mon-Friday 8AM-5PM CST.
1-800-738-1828

Read Featured Reviews From Actual Customers Read All Reviews

We Offer System Design & Turnkey Installation Services

Installing a commercial-grade cell signal booster system requires a professional's touch. Our team of signal experts will make sure you get coverage where you need it. We have improved indoor cellular coverage in millions of square feet for some of the largest companies in the world.

Phone Number Support
Let's talk now:1-800-738-1828

Product Details

The Zinwave Uniwave 8000 Transport Module creates a fiber link between two cascaded Primary Hubs to couple services without using coax. A set of Transports Modules is needed for the setup. One attaches to the front of the main Primary Hub, making it the UniTransport Hub, and the other one attaches to the back of the second Primary Hub. Up to 8 Transport Modules can be installed in the front of the Primary Hub, or up to 4 in the rear. Transport Modules cannot be deployed in the front and rear of the same Primary Hub.

Technical Specifications

Transport Module
MAXIMUM NUMBER PER PRIMARY HUB 8
OPTICAL LOSS PER LINK UP TO 5 dBo PRIMARY HUB TO SECONDARY HUB OR PRIMARY HUB TO REMOTE
OPTICAL TRANSMIT POWER 4.5 mW (MIN) TO -10 mW (MAX) AUTO-CONFIGURED BY SOFTWARE
OPTICAL RECEIVE POWER 10 mW (MAX)
RETURN LOSS BETTER THAN 45 dB FOR ALL FIBER CONNECTIONS IN THE SYSTEM
CONNECTIVITY SC/APC DUPLEX SC/APC CONNECTIONS REQUIRED FOR OPTIMUM PERFORMANCE
DIMENSIONS W / D / H (mm) 1.2" (31) x 4.6" (117) x 4.6" (116)
WEIGHT 0.6 LBS (0.28 Kg) UNPACKED
Approvals & Listings
EUROPE CE MARKED FOR RADIO EQUIPMENT DIRECTIVE 2014/53/EU AND ROHS DIRECTIVES 2011/65/EC
USA FCC FCC CERTIFIED
CANADA INDUSTRY CANADA CERTIFIED
SAFETY IEC 60950-1; EN 60950-1; UL60950-1, UL LISTED-E486578
LASER SAFETY IEC 60825-1:2007
UPC 810005964425
