The Zinwave Uniwave 8000 Secondary Hub connects to the Optical Module in the Uniwave Primary Hub via fiber to extend the reach of optical signals or provide additional coverage. Received signals are distributed across a maximum of 8 Unitivity Remote Units (RUs) without needing additional modules. The integrated power supply unit (PSU) allows easy powering of all the attached RUs. Secondary Hub can be housed with the Primary Hub or distributed throughout a campus, facilitating versatile deployment options for any site layout.

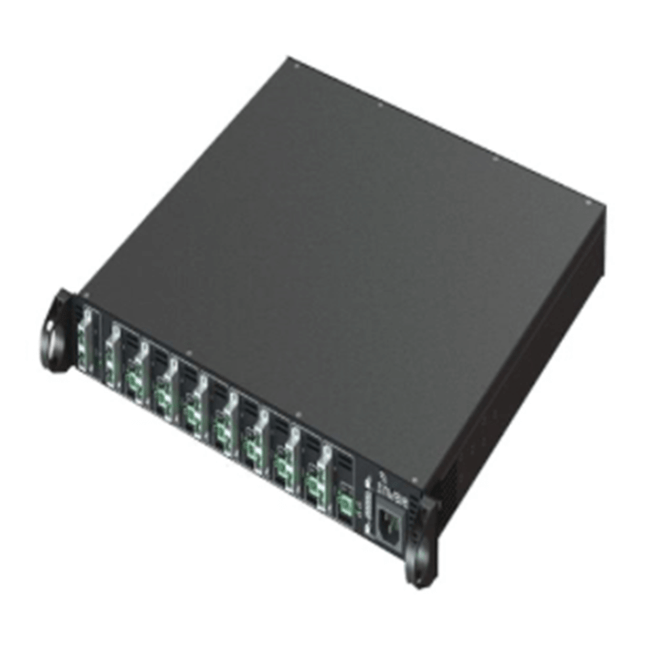

Zinwave Uniwave 8000 Secondary Hub
Zinwave Uniwave 8000 Secondary Hub | 308-0004
FREE Standard Shipping*
Read Featured Reviews From Actual Customers Read All Reviews
Product Details
Technical Specifications
| Unit Specifications | |
| SKU | 308-0004 |
| POWER CONNECTIVITY | 48 V DC POWER OUTPUT VIA PHOENIX 5.08mm 2-WAY CONNECTOR; AWG 12-24 |
| FIBER CONNECTIVITY | SC/APC DUPLEX |
| OTHER CONNECTIVITY | ALARM RELAY (DB-9F) |
| DIMENSIONS W / D / H (mm) | 17.5” (444) x 17.1” (435) x 1.7” (43.7) (1RU) |
| WEIGHT | 15 LBS (6.8 Kg) |
| OPERATING TEMP AMBIENT NON-CONDENSING | -5 TO +45ºC (23 TO 113ºF) |
| Approvals & Listings | |
| EUROPE | CE MARKED FOR RADIO EQUIPMENT DIRECTIVE 2014/53/ EU AND ROHS DIRECTIVES 2011/65/EC |
| USA FCC | FCC CERTIFIED |
| CANADA | INDUSTRY CANADA CERTIFIED |
| SAFETY | IEC 60950-1; EN 60950-1; UL60950-1, UL LISTED-E486578 |
| LASER SAFETY | IEC 60825-1:2007 |
| UPC | 810005964418 |
| PRODUCT DOWNLOADS | Technical Specifications |
