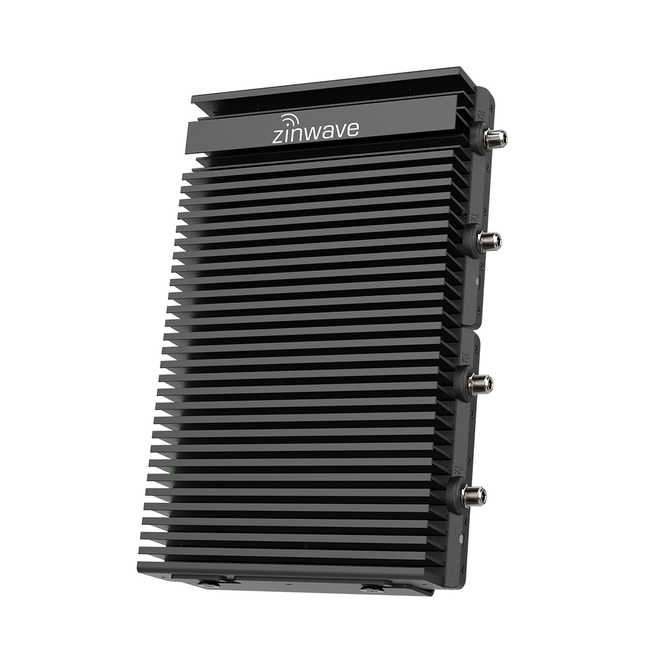

Zinwave Uniwave 8000 2 Path Remote Unit | 308-0007-2 - Front Angle
Zinwave Uniwave 8000 2 Path Remote Unit

Zinwave Uniwave 8000 2 Path Remote Unit | 308-0007-2

In Stock: Ships in 1 - 2 weeks
Free Standard Shipping FREE Standard Shipping*
  • 2x2 MIMO Remote Unit for Uniwave 8000 System
  • Converts and Amplifies Uplink and Downlink Signals
  • Up to 25 dBm Output Power
  • Supports Frequencies 150 MHz to 5 GHz
  • Lightweight and Easy to Install
In Stock: Ships in 1 - 2 weeks
This is a commercial-grade product needing EXPERT ADVICE from professionals
Phone
Or call our experts directly Mon-Friday 8AM-5PM CST.
1-800-738-1828
Wilson Amplifiers Canada - Free Shipping Guarantee
FREE standard shipping
to Ontario & Quebec*.
Wilson Amplifiers Canada - Money-back Guarantee
Up to 30 day
Money-back guarantee.
Wilson Amplifiers Canda - Warranty Guarantee
Up to 1 year
manufacturer's warranty.

Read Featured Reviews From Actual Customers Read All Reviews

Product Details

The Zinwave Uniwave 8000 2 Path Remote Unit connects to the Primary or Secondary Hub via fiber. It converts optical signals to RF, or vice versa, and amplifies them for transmission to or from mobile devices. 2x2 MIMO, it supports two receiving antennas and two transmitting antennas, reducing the amount of equipment needed. With up to 25 dBm downlink, this RU delivers incredible coverage. It covers all frequencies from 150 MHz to 5 GHz. This includes 4G, 5G, Public Safety, and two-way radio support. 2 Path RU can be mounted above ceiling tiles or out-of-sight locations in any orientation.

Technical Specifications

Unit Specifications
SKU 308-0007-2
POWER CONNECTIVITY 48 V DC POWER INPUT VIA PHOENIX 5.08mm 2-WAY CONNECTOR; AWG 12-24
FIBER CONNECTIVITY LC/APC DUPLEX
ANTENNA CONNECTIVITY SIMPLEX N-FEMALE CONNECTORS (TX AND RX)
OTHER CONNECTIVITY ALARM RELAY: PHOENIX 5.08 mm 3-WAY
DIMENSIONS W / D / H (mm) 2X2 - 17.7" (450) x 10.8" (275) x 3" (75)
WEIGHT 2X2 - 17.6 LBS (8 KG)
ELECTRICAL DEPENDING ON CONFIGURATION 48 V DC / 1A / 50W (170 BTU/HR) Each Path
OPERATING TEMP AMBIENT NON-CONDENSING -5 C to +45 C
Approvals & Listings
EUROPE CE MARKED FOR RADIO EQUIPMENT DIRECTIVE 2014/53/EU AND ROHS DIRECTIVES 2011/65/EC
USA FCC FCC CERTIFIED
CANADA INDUSTRY CANADA CERTIFIED
SAFETY IEC 60950-1; EN 60950-1; UL62368-1; UL2043
LASER SAFETY IEC 60825-1:2007
ENVIRONMENT IP20 Rated
UPC 810005964449
PRODUCT DOWNLOADS Technical Specifications
