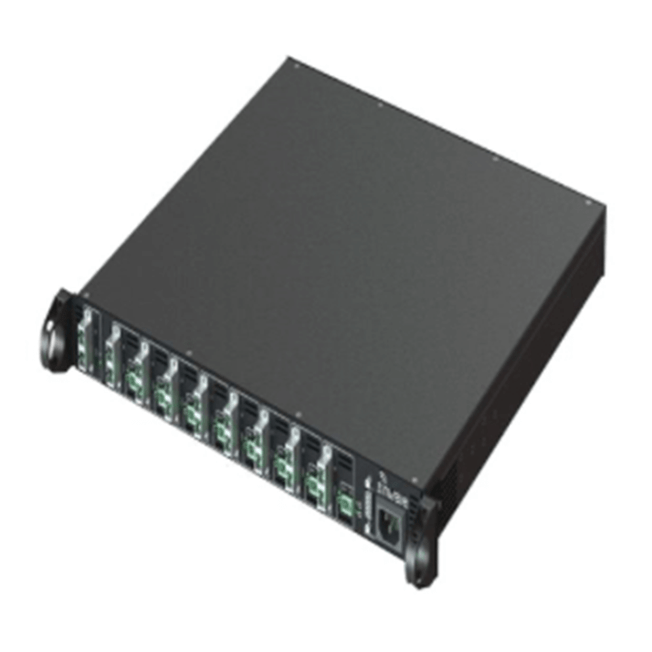

Zinwave Unitivity 5000 Secondary Hub with Back Power | 305-1004 - Front
Zinwave Unitivity 5000 Secondary Hub with Back Power

Zinwave Unitivity 5000 Secondary Hub with Back Power | 305-1004

In Stock: Ships in 1 - 2 weeks
Free Standard Shipping FREE Standard Shipping*
  • Extends Signal Reach or Adds Coverage
  • Accommodates Up to 8 Remote Units (RUs)
  • Powers RUs with Built-In Power Supply Unit
  • Back Power Port
  • Modules Not Required
In Stock: Ships in 1 - 2 weeks
This is a commercial-grade product needing EXPERT ADVICE from professionals
Phone
Or call our experts directly Mon-Friday 8AM-5PM CST.
1-800-738-1828
Wilson Amplifiers Canada - Free Shipping Guarantee
FREE standard shipping
to Ontario & Quebec*.
Wilson Amplifiers Canada - Money-back Guarantee
Up to 30 day
Money-back guarantee.
Wilson Amplifiers Canda - Warranty Guarantee
Up to 1 year
manufacturer's warranty.

Read Featured Reviews From Actual Customers Read All Reviews

Product Details

The Zinwave Unitivity 5000 Secondary Hub (305-1004) interfaces with the Optical Modules installed in the Unitivity Primary Hub through fiber. Its role is to increase the range of optical signals or supply added coverage. RF signals are distributed across a maximum of 8 Remote Units (RUs) connected directly to the Hub (no need for modules).

Built-in power supply unit (PSU) enables the convenient powering of the RUs. The power port and a power switch for the Hub are on the back.

Secondary Hub has the flexibility to be installed with the Primary Hub or across a campus, presenting a wide range of deployment options suitable for any site layout.

Technical Specifications

Unit Specifications
SKU 305-1004
POWER CONNECTIVITY 48 V DC POWER OUTPUT VIA PHOENIX 5.08mm 2-WAY CONNECTOR; AWG 12-24
FIBER CONNECTIVITY SC/APC DUPLEX
OTHER CONNECTIVITY ALARM RELAY (DB-9F)
DIMENSIONS W / D / H (mm) 17.5" (444) x 17.1" (435) x 1.7" (43.7) (1RU)
WEIGHT 15 LBS (6.8 Kg)
OPERATING TEMP AMBIENT NON-CONDENSING -5 TO +45ºC (23 TO 113ºF)
Approvals & Listings
EUROPE CE MARKED FOR RADIO EQUIPMENT DIRECTIVE 2014/53/EU AND ROHS DIRECTIVES 2011/65/EC
USA FCC FCC CERTIFIED
CANADA INDUSTRY CANADA CERTIFIED
SAFETY IEC 60950-1; EN 60950-1; UL60950-1, UL LISTED-E486578
LASER SAFETY IEC 60825-1:2007
UPC 810005964715
PRODUCT DOWNLOADS Technical Specifications
