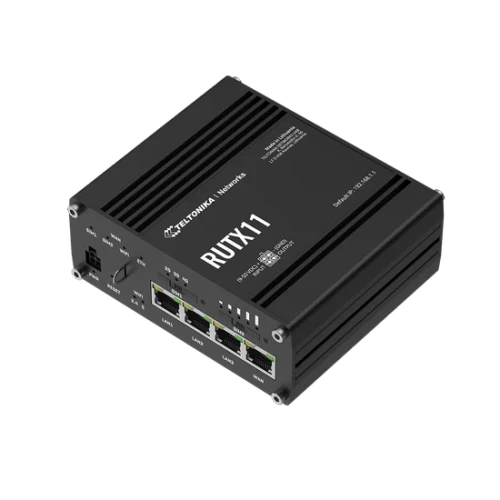

The RUTX11 Industrial 4G Cellular Router is a compact powerhouse. Perfect for professional applications needing fast, reliable connectivity and high data throughput. Effortlessly keeps internet access running smoothly.
Equipped with dual SIM and WAN capabilities, the RUTX11 ensures continuous uptime. If your primary connection is too weak or drops, auto-failover to backup connection prevents interruptions, keeping operations running smoothly.
Using the power of 4G LTE, Teltonik’s RUTX11 delivers reliable internet. Its CAT6 mobile module provides speeds up to 300 Mbps. Sensors, computers, tablets, and other devices can easily connect via WiFi, LAN Ethernet, or Bluetooth LE.
With integrated GPS, the RUTX11 also elevates fleet management strategies. From semi-trucks to delivery vans, accurate vehicle tracking ensures optimized route planning, timely deliveries, and enhanced safety.
The RUTX11 uses Teltonika’s open-source operating system, allowing easy customization for your unique needs. Compatible with RMS, monitor and manage your network from anywhere.
The Teltonika RUTX11 is a 4G cellular router designed for data-demanding business IoT and fleet applications. Though, it can also be used in homes and RVs.
Equipped with a CAT6 mobile module and carrier aggregation, it delivers max speeds of 300 Mbps. Dual SIM design allows automatic switching between two carrier networks for continuous uptime. It’s compatible with Bell, Telus, and Rogers. Also sporting a WAN port, it's a perfect backup solution for broadband internet.

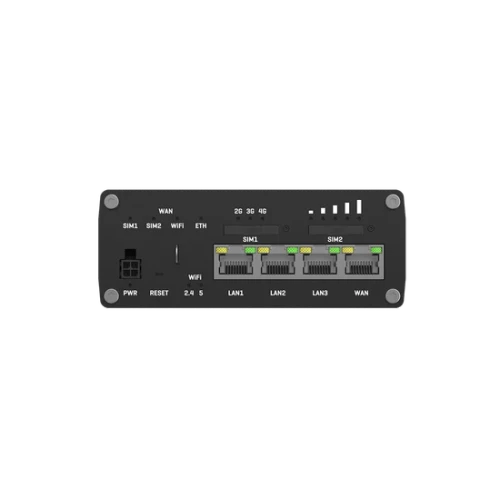

Featuring WiFi 5, 3 LAN ports, and Bluetooth LE, the RUTX11 4G router offers flexible ways to connect devices. GPS functionality enables real-time tracking for efficient fleet management. Industrial aluminum housing capable of withstanding challenging environments ensures optimal performance in any situation.
With a customizable interface, effortlessly tailor performance to your specific needs. Using Teltonika’s RMS platform, monitor and manage the RUTX11 from anywhere.
| Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, Carrier aggregation |
| Dimensions | 115 x 44.2 x 95.1 mm |
| Weight | 456 g |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| Band Management | Band lock, Used band status display |
| SIM Idle Protection | When using dual SIM, the inactive SIM remains idle to conserve data |
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB, DDR3 |
| FLASH storage | 256 MB, SPI Flash |
| Bridge/Passthrough | Direct connection between mobile ISP and LAN device / Router assigns mobile WAN IP to LAN device |
| Wireless Mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5), up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, AP, STA |
| Wi-Fi Security | WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| SSID/ESSID | ESSID stealth mode |
| Wi-Fi Users | Up to 150 simultaneous connections |
| Wireless Hotspot | Captive portal, Radius server, SMS authorization, landing page, walled garden, user scripts, URL parameters, user groups, limitations, user management, 9 customizable themes |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), Relayd |
| Wireless MAC Filter | Whitelist, blacklist |
| Wireless QR Code Generator | Auto-connects user to network upon scanning |
| WAN | 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| LAN | 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| Attack Prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| PDFs |
Specifications Sheet |
It’s a robust 4G router designed for business IoT and fleet applications. Versatile, it can also be used in homes and RVs.
Devices can connect to the RUTX11 over WiFi, LAN, or Bluetooth LE.
The RUTX11 is a dual SIM router, meaning it supports two SIM cards from different carriers. The router will automatically switch between the two cards when detecting weak or unavailable reception for uninterrupted internet.
No. The inactive SIM card will not use up any data until it’s in use.
4G (LTE-FDD): B2, B4, B5, B7, B12, B13, B25, B26, B291, B30, B66
3G: B2, B4, B5
