The Peplink UBR LTE is an easy-to-use, powerful, SDWAN capable dual LTE cellular router. It's designed to provide unbreakable connectivity. Perfect for both mobile and industrial applications. Users will enjoy continuous uptime while in the office or on the go.
The UBR LTE integrates WiFi, LTE, Gigabit Ethernet, and Gigabit WAN, allowing multiple ways to access the internet anytime. Built-in GPS provides optimal vehicle tracking. Keep up to 60 devices connected with up to 120 Mbps of throughput.
Featuring dual LTE modems, the UBR LTE offers better speeds, load-balancing, and reliability. Supporting up to four SIM cards, Gigabit WAN, and WiFi as WAN, easily build a more resilient network with multiple failover options. If your main connections drop, automatic network switching keeps all devices connected. With Peplink's SpeedFusion you can combine multiple WANs and access hot failover for an even faster, more reliable connection.
With DIN mounts and Molex power connectors, the UBR LTE integrates seamlessly with existing equipment. Ruggedized chassis ensures reliable performance in extreme environments. Deploy it in construction sites, warehouses, public safety vehicles, or RVs.
Straight out of the box, the UBR LTE provides unbreakable connectivity with PrimeCare*. It includes the tools for cloud management, remote software upgrades, bonding, and more.
*PrimeCare is complimentary for 1 year.
The Peplink UBR is an affordable, yet powerful SD-WAN capable LTE router. It integrates WiFi, LTE, Gigabit Ethernet, and Gigabit WAN, allowing multiple ways to connect. Use it to keep your vehicles, branch offices, and IoT sites online. Built-in GPS offers optional tracking.
Compact chassis houses two LTE modems, making two simultaneous connections possible. This allows for better speeds, little to no downtime, load balancing, and load bonding. It supports up to four SIM cards, two for each modem, providing multiple failover options. LTE Modem 2 is FirstNet and Band 71 ready. Rugged, deploy it in even harsh environments without affecting reliability.
Access to PrimeCare* right out of the box, you have everything needed for cloud management, SDWAN provisioning, zero-touch deployment, bonding, and more.
*PrimeCare is complimentary for 1 year.
| WAN Interface |
1x GE 2x LTE Modems |
|
| LAN Interface | 4x G | |
| Router Throughput | 120Mbps | |
| SpeedFusion Hot Failover | * | |
| SpeedFusion WAN Smoothing | * | |
| SpeedFusion Bandwidth Bonding | * | |
| Number of PepVPN SpeedFusion Peers | 2/5* | |
| SpeedFusion Throughput (No Encryption) | 40Mbps | |
| SpeedFusion Throughput (256-bit AES) | 20Mbps | |
| Recommended Users | 1-60 | |
| LTE Modem | Downlink/Uplink Datarate: 150Mbps/50Mbps | |
| Wi-Fi Standard | 2.4GHz: 802.11b/g/n OR 5GHz: 802.11a/n | |
| Wi-Fi as WAN | - | |
| Antenna Connectors | 4x SMA Cellular, 2x Wi-Fi, 1x SMA GPS | |
| Power Input |
Device: 12V - 28V DC AC Adapter: AC Input 100V - 240V / DC Output 12V Terminal Block: 12V - 28V DC |
|
| Power Consumption | 24W (max.) | |
| Ignition Sensing | - | |
| Dimensions (L x W x H) | 5.1 x 4.3 x 1.6 inches / 130 x 110 x 41 mm | |
| Weight | 1.2 pounds / 515 grams | |
| Operating Temperature | -40° - 149°F / -40° - 65°C | |
| Humidity | 15% - 95% (non-condensing) | |
| Warranty | 1-Year Limited Warranty | |
| Certifications |
IC, FCC, CE, RoHS, EN 61000: Electromagnetic Compatibility |
|
| Package Content |

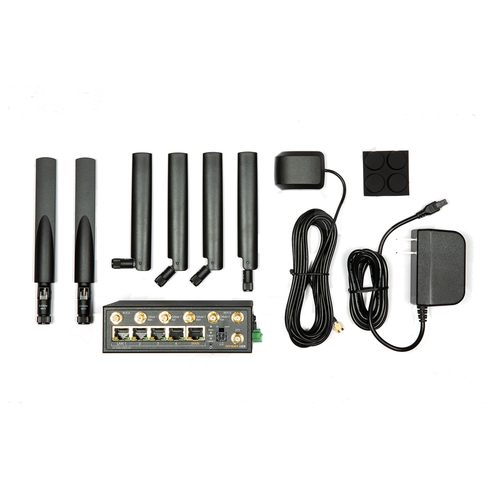

UBR LTE, 12V2A Power Supply (ACW-632), 2x Wi-Fi Dual Band Antenna (ACW-341), 4x LTE Antennas (ACW-813), 1x GPS Antenna (ACW-232), 4pin Terminal Block Connector, Rubber Foot Pad Set |
|
* Requires PrimeCare Subscription, complimentary for the first year.
The Peplink UBR LTE comes with two LTE modems, allowing it to support 2 simultaneous connections at any given time. Each modem has 2 designated SIM card slots. They are used to access multiple cellular networks.
The router captures existing LTE signals from different carriers and converts them into reliable internet. Users can connect via WiFi or Ethernet. If your main LTE connections go down, automatic failover ensures continuous uptime.
You also have the option to stay connected using wired WAN and WiFi as WAN.
If you're looking for an affordable LTE router with dual modems, multiple failover features, SDWAN capabilities, and cloud management, the UBR LTE is for you. While predominately designed for mobile applications, you can also use it to keep your business or IoT units connected. Rugged exterior ensures great performance in even harsh environments.
The UBR LTE is compatible with all major US and Canadian carriers.
No. The Peplink UBR LTE router only works with 4G LTE frequency bands. Specifically:
LTE Modem 1: B2, B4, B5, B12, B13, B25, B26
LTE Modem 2: B12, B14, B4, B2, B5, B13, B66, B71
For 5G compatibility, consider the Peplink Max BR1 Pro 5G
Yes. To use Band 71, insert a compatible carrier's SIM card into Cellular SIM 2.
Yes. To use FirstNet Bands 12 and 14, insert your FirstNet SIM into Cellular SIM 2.
It depends. We highly recommend that you connect all cellular and WiFi antennas. Though, the GPS antenna is only necessary if you want to use the tracking functionality.
It uses Mini-SIMs (2FF).
No. The WAN port double as a LAN port.
PrimeCare is Peplink's subscription service bundling InControl, Warranty, SpeedFusion license upgrades, and FusionHub Licenses in one neat package.
All our Peplink routers come with 1-year of PrimeCare upon activation.
You will need at least one SIM Card with an activated data plan to receive data from this cellular router
SIM Cards are sold separately
